Horizontal Float Level Control Valves - GF16YFV40

BKV ‘’BSV’’ Model Pressure sustaining control valves are designed to keep
inlet pressure stable. When system pressure is higher than the adjustment
pressure, inlet pressure is kept stable by opening the valve. Without being
affected by pressure waves, it keeps the inlet pressure stable. It is assembled
in the outlet of filtration systems and provides effective backwashing-flushing
of the filtration system.


kontrol_19 a-Float
b-Needle Valve
c-Ball Valve
d-In-Line Finger Filter
e-Body

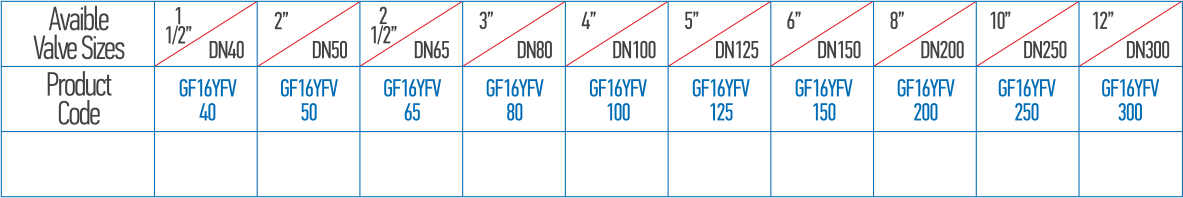

ap_11

Please submit following information to our sales department while ordering.
Maximum flow rate : m³/h
Maximum network/line pressure : bar
Main line size : mtm
Valve connection type : ---
Maximum upstream pressure : bar
Minimum upstream pressure : bar
Desired downstream pressure : bar

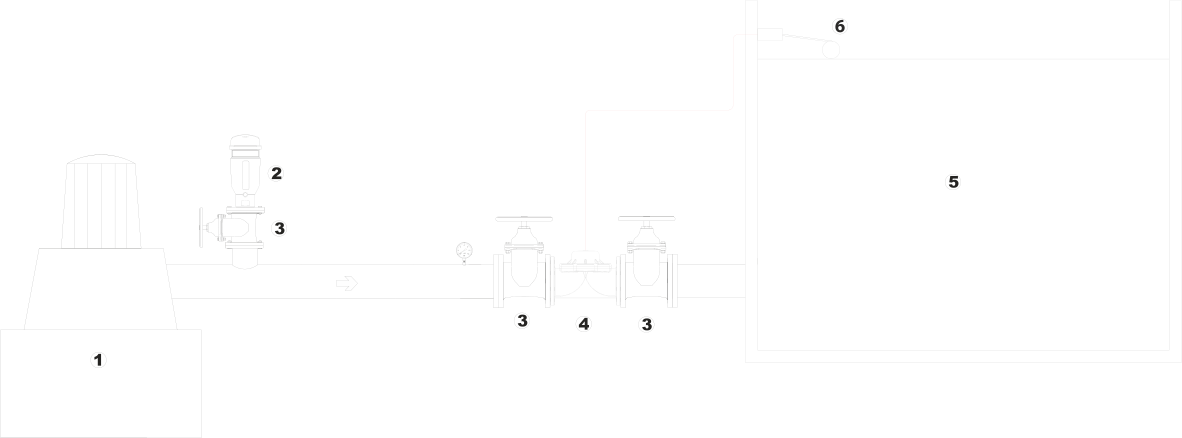

rnek_7

1-Pump
2-Air Valve
3-Isolation Valve
4-Horizontal Float Level Control Valve
5-Reservoir
6-Float
